2005 International FE 300 Finished Skoolie

2005 International FE 300

Registered in states of MO as 2019  RV/MOTORHOME

—will not need commercial insurance

Bus Specs

–DT466e engine-(engine rebuilt 2019)

– Allison 2500 series automatic  transmission

-173,146 miles.

-38 feet long

-11’-6” Height(outside)

-7’ Wide

-Air Brakes

-Secondary air tank is tapped to run air hose to fill tires

-Upgraded Headlights to GE Nighthawk LED

-Full-time rear view camera

-Scan Gauge D – vehicle monitor

-battery selector switch allows you to charge house batteries off of alternator or could use house batteries to start bus

Construction

-Floors-3/4” foam sheet insulation

-Ceiling/Wall- 2 1/2” of spray foam insulation. -Ceiling has additional 1/2” foam board added

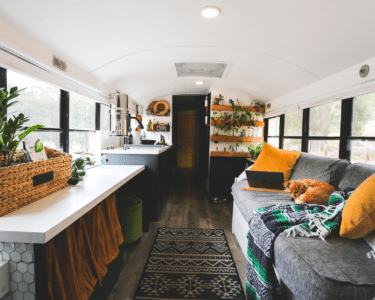

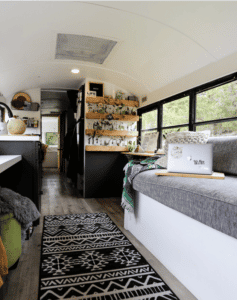

-open format for maximum space

-walls and ceiling are 1/4” plywood

-Select Blinds cellular window shades

-5 kw diesel heater w/ 5 gallon marine fuel tank

-Dometic 15,000btu rooftop air conditioner(wiring ran for second AC unit in rear)

-Maxxair Maxxfan

-Aims 3 kw pure sine wave invertor 12v 30amp

-6 100ah Renogy Gel Cell batteries for the house power

-2 20lb propane tanks mounted in storage bay

-Takagi propane instant hot water heater

-Magic Chef 10 cu ft refrigerator (120v)

-Nature’s Head Conposting Toilet

-Atwood 2 burner propane stove

-Walk-in shower 30×30 with retractable door

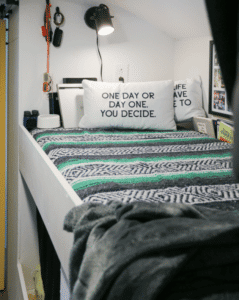

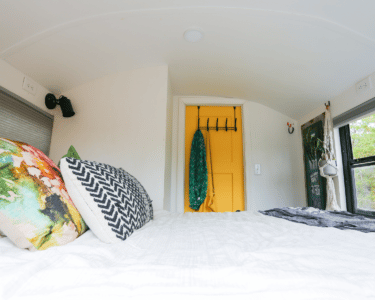

-Sleeps 5 comfortably (queen bed in master bedroom, 2 twin mattresses in bunk room, and front couch)

-24” LED Smart TV in Master Bedroom on locking swivel mount walll bracket.

-Weboost WiFi booster antenna

–

Power

-Mix of AC/DC Power

-50 amp

-Victron BMV-712 battery monitor

-Victron MPPT Charge Controller.  250/70

-3 325w solar panels mounted on roof.

-Aims 3kw pure sine wave invertor 12v 30amp

-6 100ah Renogy Gel Cell batteries for the house power

Plumbing

-All water lines are 1/2” pex

-Fresh Water-96 gallons total located under the bed

-Grey Tank- 48 Gallons

-Black Tank-Not Needed

-12v water pump.

-customized valve system to fill water using the house water pump from a water bladder

-Gray Water tank drain uses standard sump pump hose and custom fitting for draining.
