2001 Gillig Custom Built Luxury Motorhome

Cappella Bus

Titled and insured as Motorhome (Texas).

Vehicle

• Model: 2001 Gillig Low Floor

• Size: 40ft

• Engine: Cummins ISL 8.3

• Transmission: Voith Turbo DIWABUS 864.3

• Aluminum Body: Bus body is made out of aluminum, no rust anywhere.

• Alternator: Delco 24v 270amp.

• Suspension: Front and Back Air-Ride. Bags replaced Jun/2025.

• Batteries: 4 new batteries always kept on the maintainer.

• Alcoa Aluminum Wheels: All 6 wheels are Alcoa aluminum.

• Tires: 6 New tires in Jun/2025 Toyo M170.

• Tire Pressure Monitoring System: TST 507 Series TPMS.

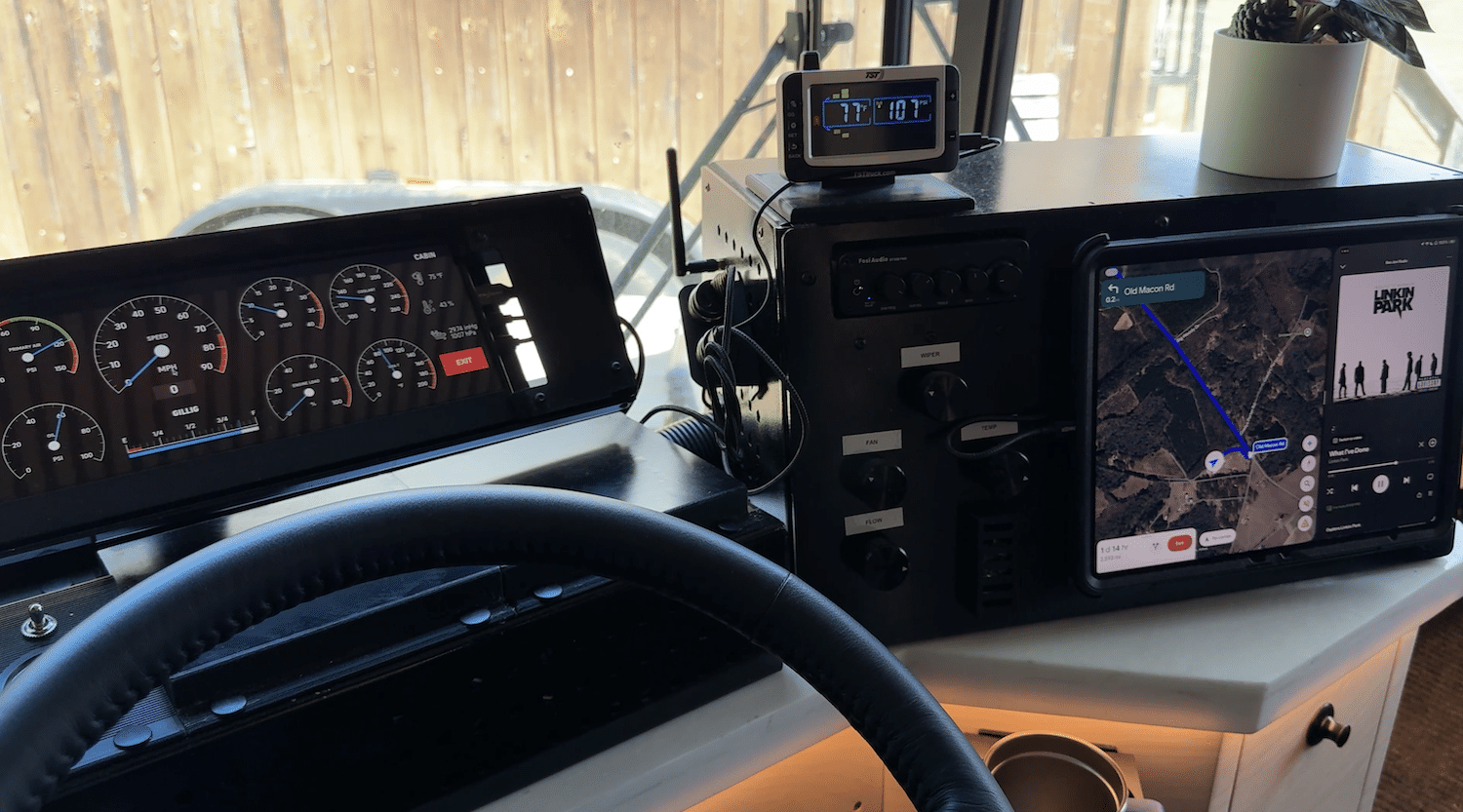

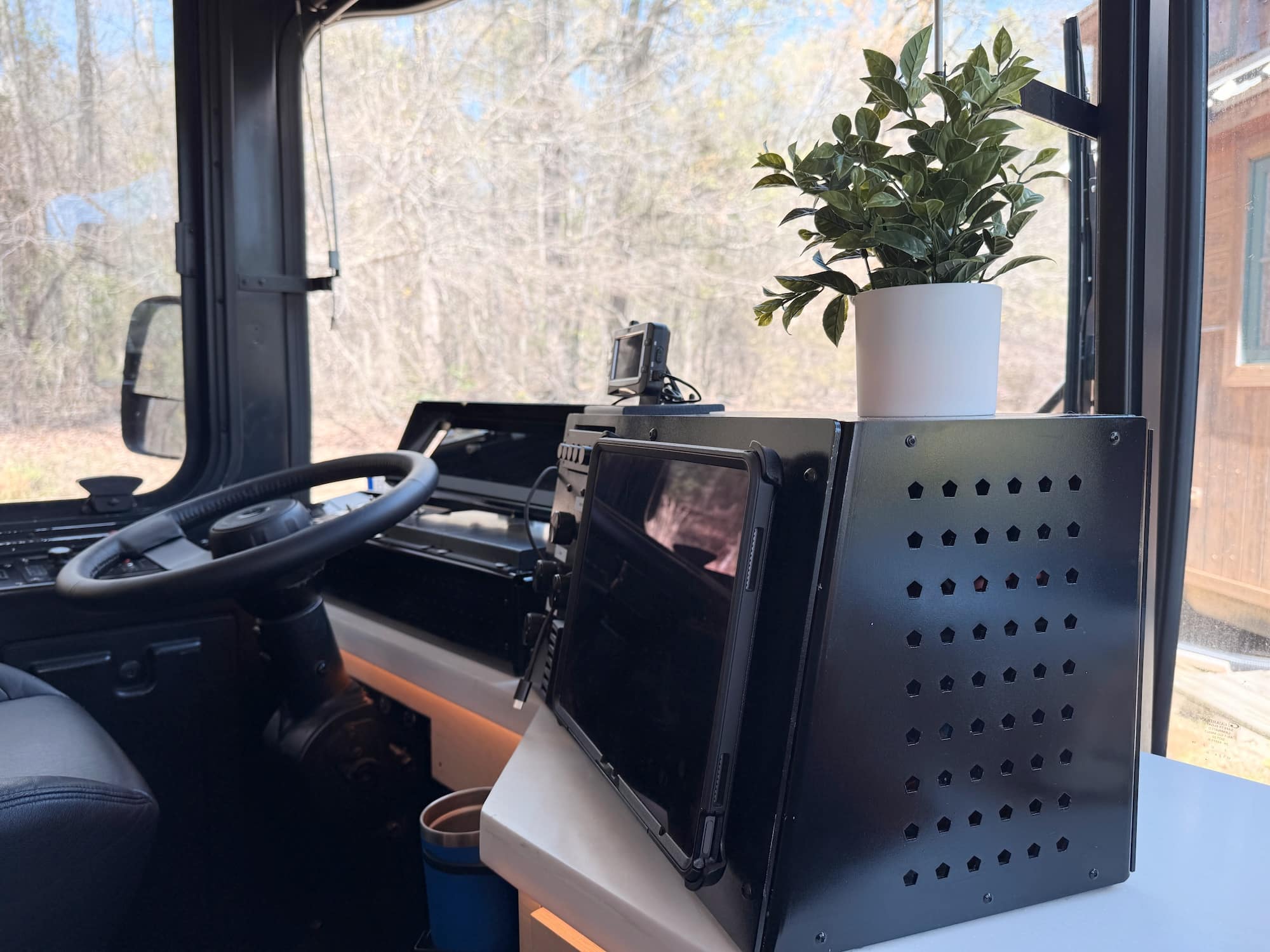

• Driving Dashboard: Fully custom digital dashboard.

• Driving Area Sound System: Alpine speakers + subwoofer | Fosi Amp – Bluetooth.

• Engine Status: All engine/transmission filters and liquids replaced in Jun/2025, including engine coolant total flush.

• Manuals: All VIN-specific manuals included in .pdf (Maintenance, Parts, Schematics, and Electric manuals) purchased from Gillig directly.

House Highlights

• Interior Design: Designed by Omicron Studios with Salvador Gálvez.

• Security: Reolink DVR 8CH | 2x REOLINK RLC-843A – 4K PoE Camera | 2x REOLINK 4K 8MP 180° Dual-Lens PoE Camera.

• Automation System: Automated, smart house using Home Assistant in the local environment.

• Main Material: Baltic Birch Plywood (13 Ply).

• Electrical System: 110v/240v electrical system.

• Large solar array with commercial panels.

• StartLink Roof Rack

• Internal Insulation: 1st layer of sound deadening/vapor barrier (Siless Liner 157 mil) on all surfaces.

Ceiling has 2 extra layers of insulation with XPS 1.5in + XPS 1in.

Floor has also XPS 1.5in.

Walls have sound deadening + XPS 1.5in or Rockwool 1.5in.

Water/Plumbing

• Fresh Water Tanks: 200 gallons.

• Gray Water Tank: 190 gallons.

• Shower: MAAX Via 32x32in | White | One-Piece | AcrylX/Fiberglass.

• Kitchen Faucet: Delta – Keele Single-Handle Pull-Down Sprayer | Matte Black.

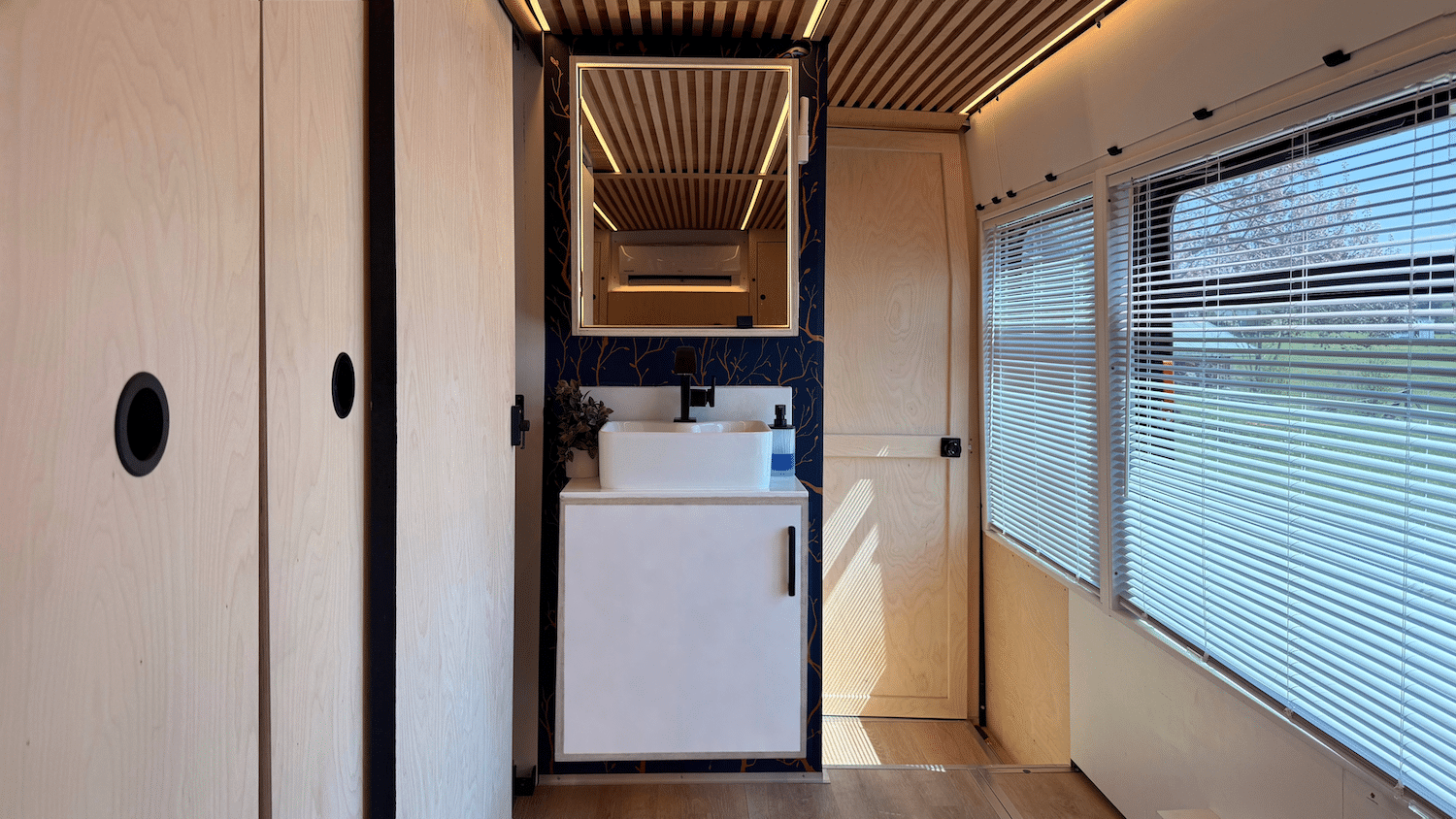

• Vanity Faucet: Kohler | Matte Black.

• Monitor Level System: Garnet 709-BTP7 – SeeLevel II

• Stainless steel electrical water valves controlled by Home Assistant with manual override.

• Whole House Culligan: 4 stage water filter system. 4x (WH-S200-C) cups with closed, bypass or open valve.

• UV Filter: Viqua D4, Stainless Steel, large capacity 12GPM.

• Drinking water and Fridge Ice Maker: Acuva ArrowMAX 2.0 UV-LED Water Purifier.

• Water Pump: Seaflo 55-Series, 12v, 5.5GPM, 60PSI.

• Accumulator Tank: 2 Gallons.

• Single water inlet that can be used for water tank fill or city source pressure. Just select the preferred mode on the dashboard.

• Fresh tank fill-up mode will automatically close the valve when the tank is full, eliminating the danger of overfill.

• Gray tank remote-dump mode will also close the valve when the gray tank is empty.

• All pipes and fittings are PEX-A and Expansion PEX (ProPEX/Wirsbo style). No crimping guesses, no vibration to loose connections, no leaks period!

• Washer/Dryer has a buffer tank for gray water discharge. This makes the washer run faster and eliminates leaks caused by overdischarge when the main “gray water tank” is full or the pipes are clogged.

Electrical/Solar

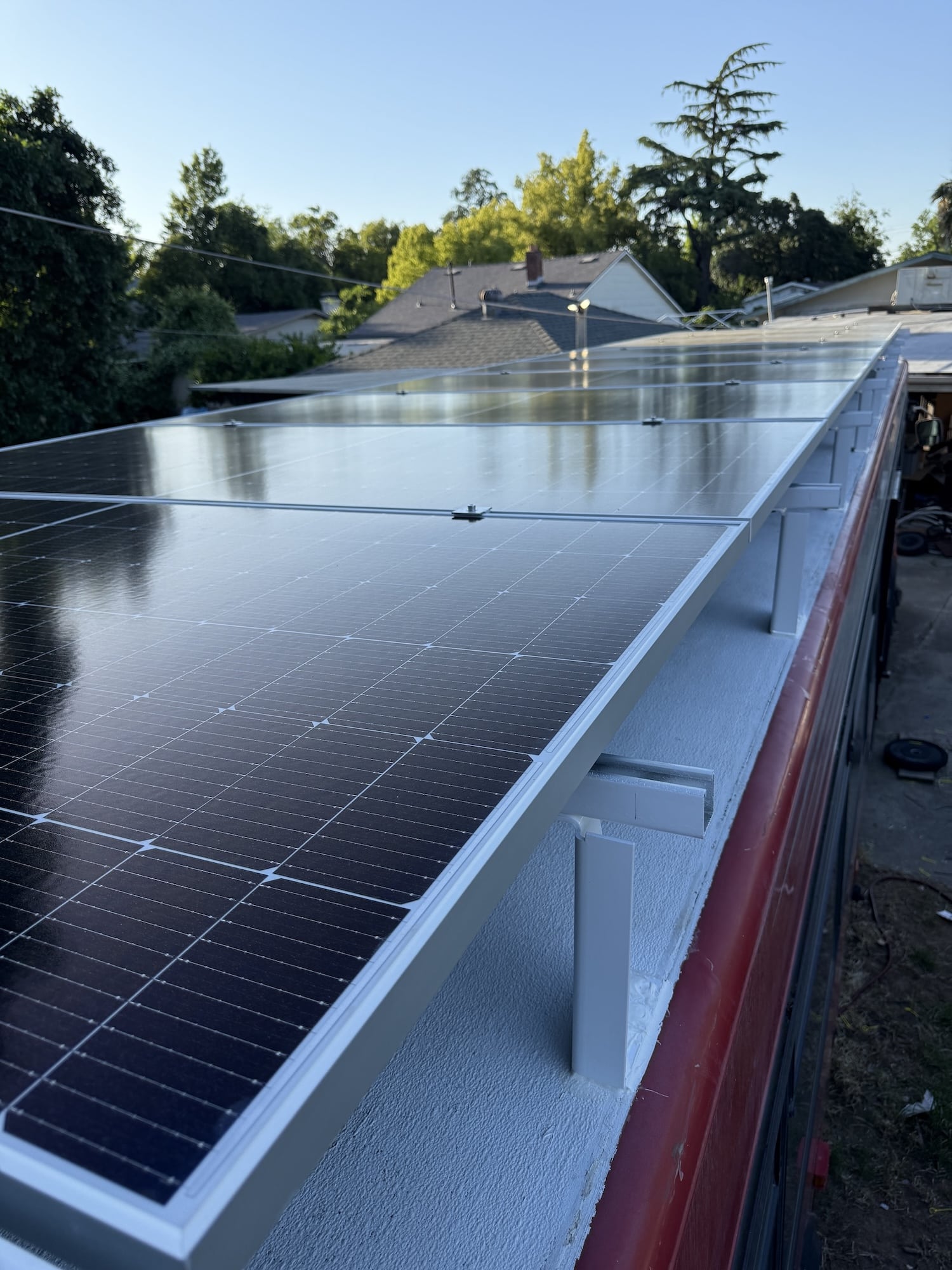

• Solar Array: 5500w | 10x “JA Solar 550W Solar Panel 144 Cell Bifacial”.

• Waterproof Disconnect Box: on the roof with proper breakers for each string of 5 panels.

• EG4 12000XP-v2 Off-Grid Inverter: 48V to Split Phase | 24kW PV Input | 12kW Power Output. 120v and 240v, 50amp. 2 MPPT Solar Charge Controller. Secure local and remote access.

• 4x Server Rack Lithium Batteries: 2x (EG4 LL-S 48V 100Ah) and 2x (ECO-WORTHY 48V 100Ah. Total storage is 400amp/hour | 20.5kwh.

• EG4 Chargeverter 5KW AC Charger: 48V 100A capacity and 5120W output, compact design and dual 240/120V input.

• Alternator to Battery charge: 3000wh.

• 50 amp inlet.

• 30 amp inlet.

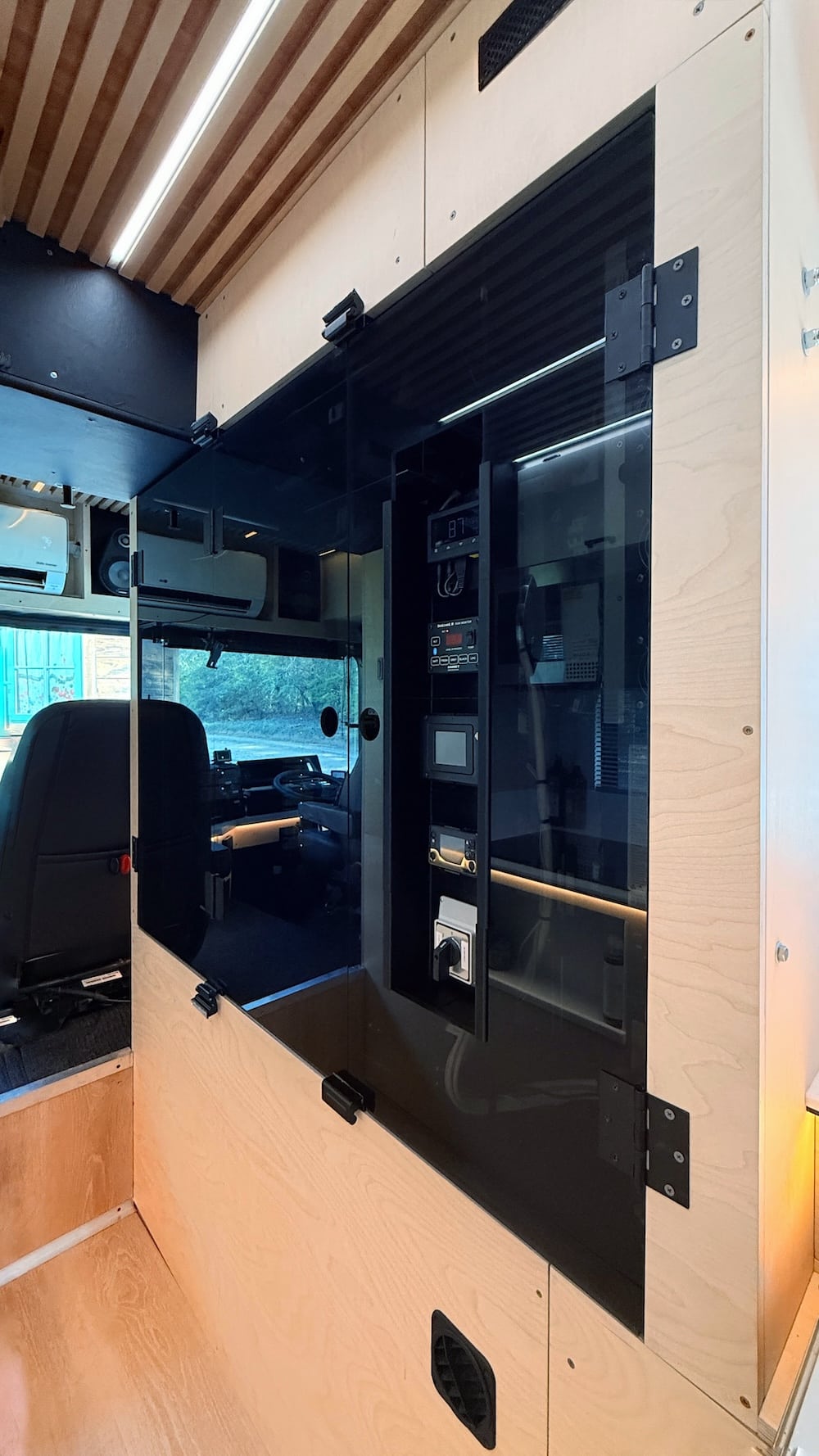

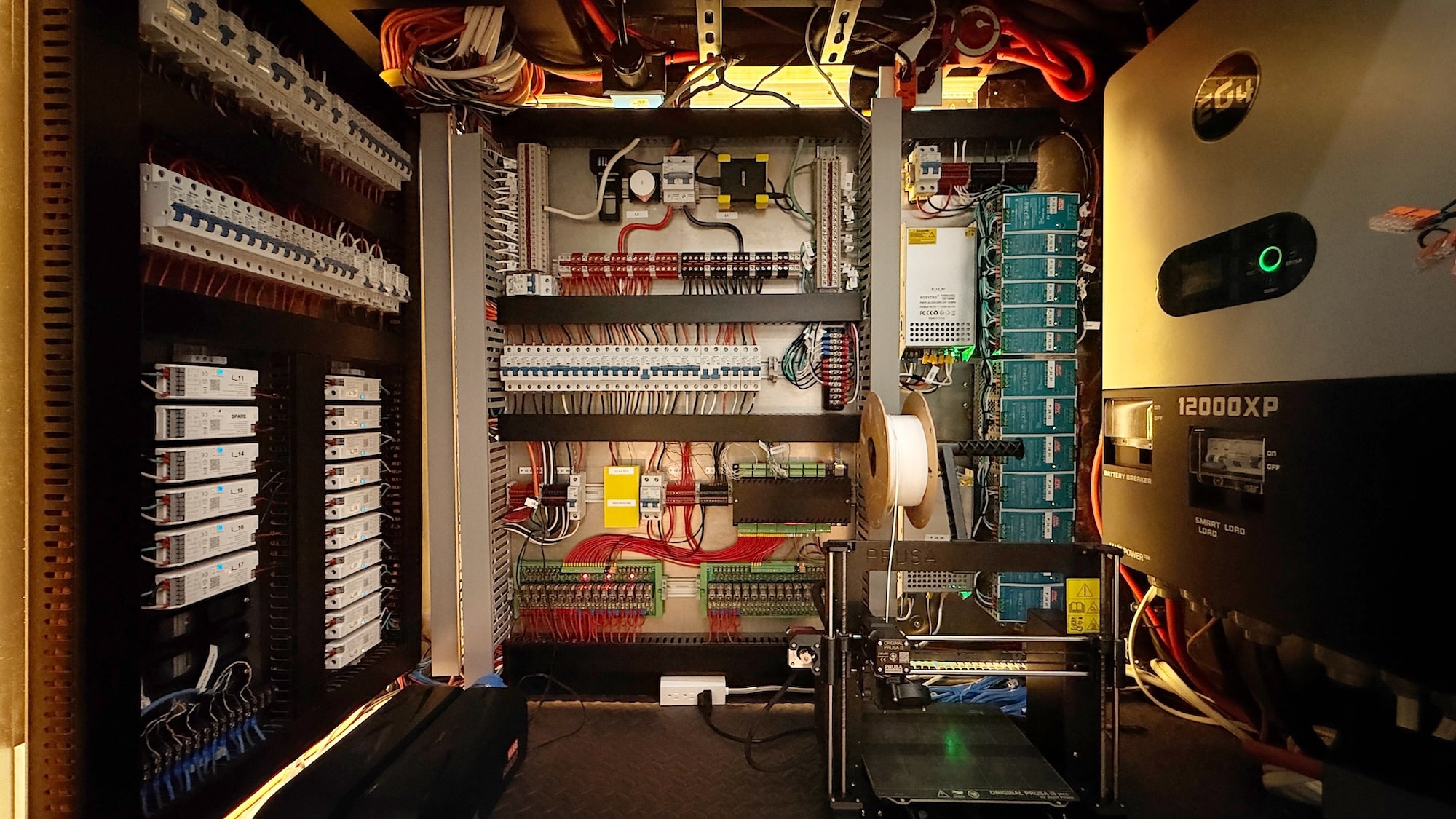

• State-of-the-art electrical closet with AC panels made with thick aluminum sheet, 1.5in spaced from walls. All breakers and components are DIN rail mounted.

• 4 Outdoor outlets 120v controlled digitally for safety.

Automation

• 1x Kincony KC868-AIO: 32CH mosfet output + 58CH digital input + 16CH analog output + 19CH analog input, support RS485 + Ethernet + WiFi + Bluetooth + DS3231 RTC module.

• 2x KC868-E16 V2 EXTEND DIN RAIL RELAY MODULE: every relay (Omron) has COM, NO, NC ports and a metal manual control switch button.

• Software: ”Home Assistant” running on Raspberry Pi 5, 4GB Ram, HD 1TB NVME.

Appliances

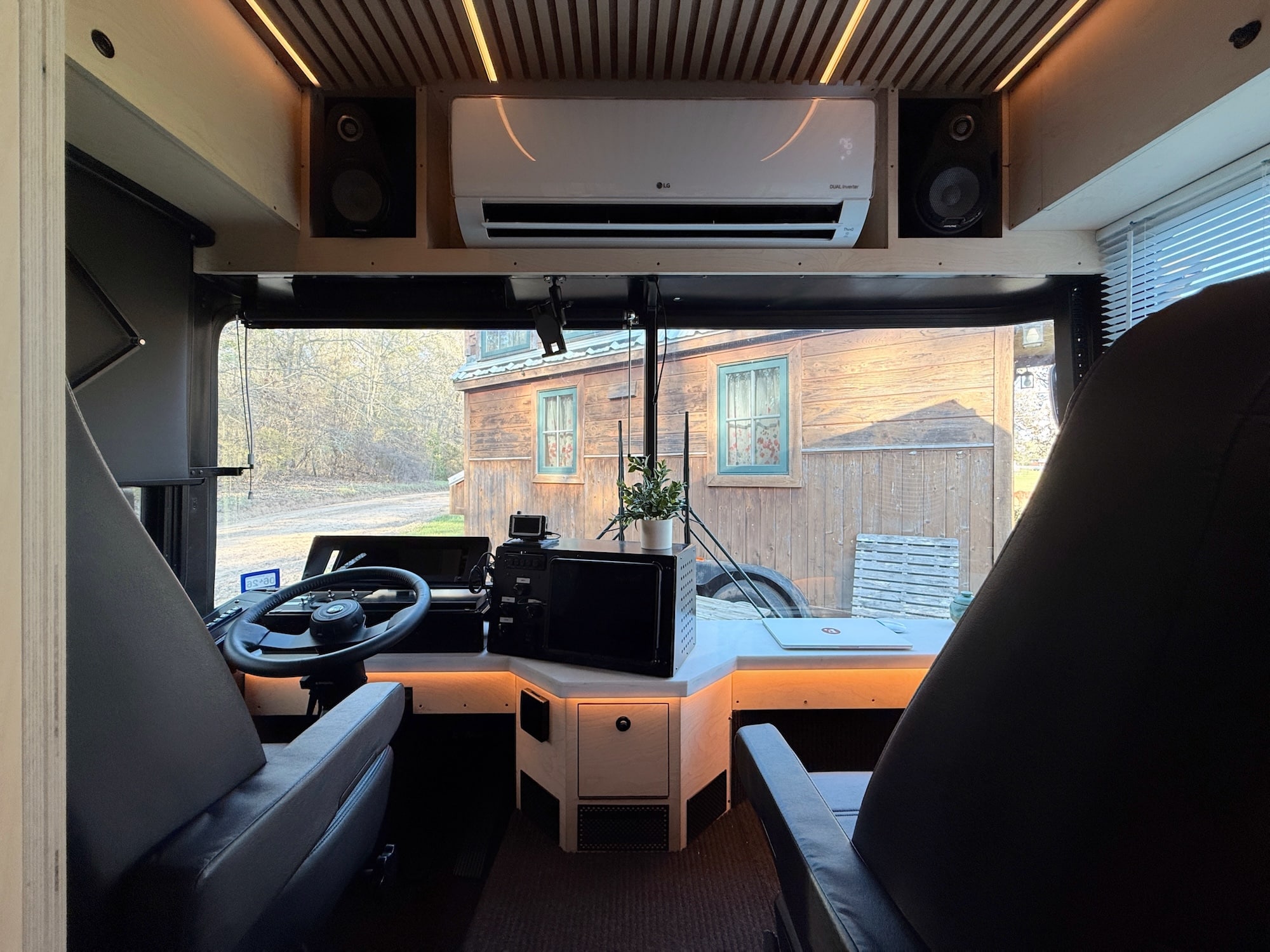

• Air conditioner: LG 24k BTU Outdoor Unit | Front: 18k BTU Indoor Unit | Back: 9k BTU Indoor Unit.

• Water Heater: Bosch Tronic Mini-tank 7gal.

• Toilet: Separett Villa.

• Microwave: Frigidaire 1.8 cu. ft. Over-The-Range.

• Induction Cooktop: Bosch Series 4 (PID631BB1E), 240v, 7400w, 3 Heating Elements.

• Dishwasher: KitchenAid (KDTM404KPS) | 24″, Top Control, Built-In Tub Dishwasher with 3rd Rack, FreeFlex, 44 dBA, Stainless Steel.

• Toaster/Oven: Breville (BOV860BSS1BUS1), Smart Oven Air Fryer – Brushed Stainless Steel.

• Fridge/Freezer: Whirlpool (WRQA59CNKZ), 19.4 Cu.Ft., 4-Door, French Door, Counter-Depth Refrigerator with Flexible Organization Spaces, Stainless Steel.

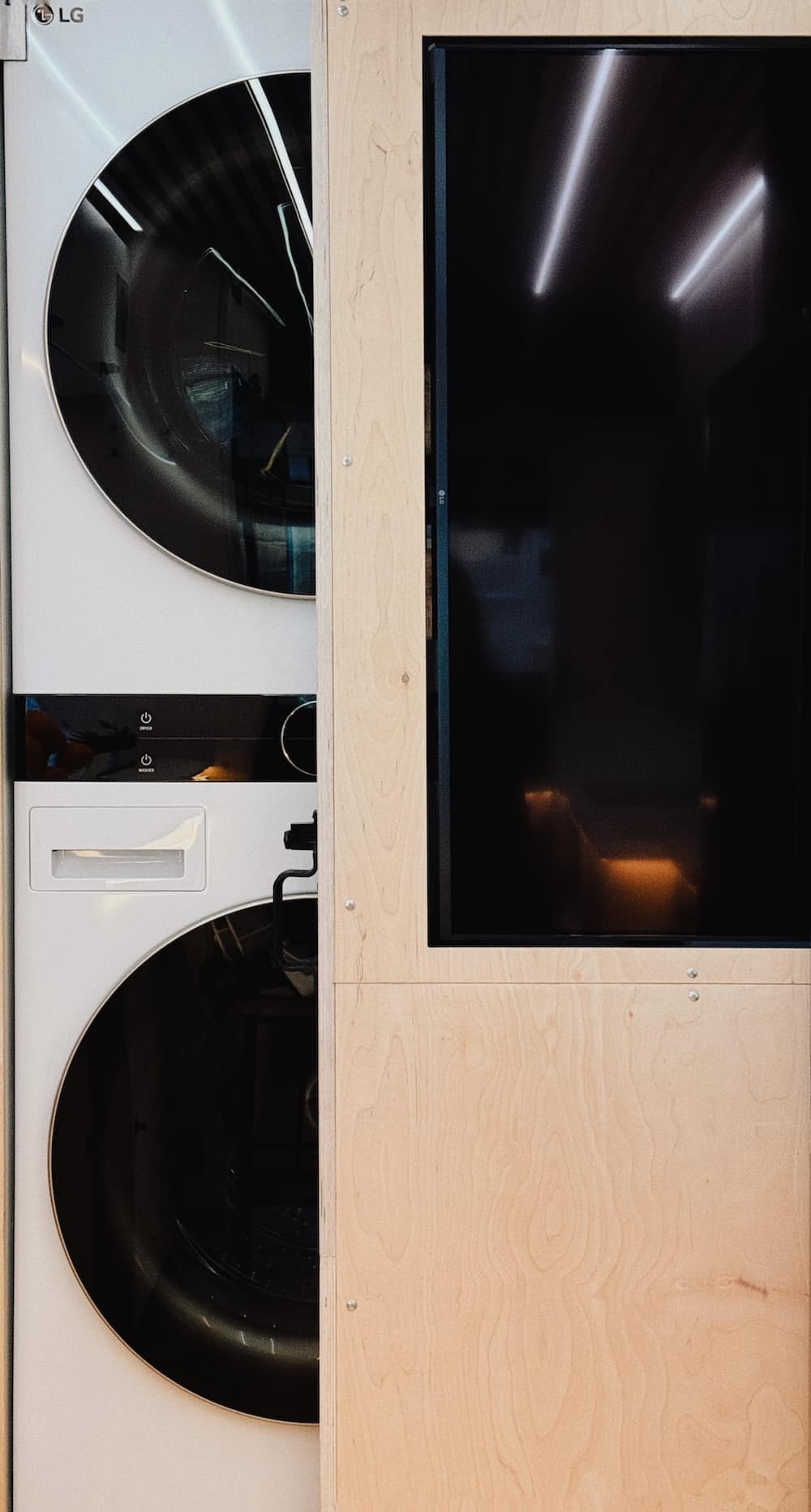

• Washer/Dryer: LG (WKE100HWA) – 4.5 Cu. Ft. HE Smart Front Load Washer and 7.4 Cu. Ft. Electric Dryer WashTower with Steam and Built-In Intelligence.

• Vacuum: Dyson | Digital Slim Cordless Vacuum

• TV Kitchen (Home Assistant Dashboard): LG (43UT7590PUA) 43” UHD 4K, Smart webOS.

• Bedroom Entertainment System: Apple TV 4k | LG TV 43” 75 Series QNED 4K UHD Smart webOS | Yamaha Soundbar + Subwoofer – ATS-2090.

• 2 Diesel Heaters: 5kw | Dedicated 18gal Aluminum Diesel Tank with external fill port

• Blinds: All included.
