2004 Thomas Built HDX Beautiful Finished Skoolie, 36 Ft Off-Grid

This Ad expired and is no longer available.
See our other active classified ads.
by Jon Paul White
Published: October 16, 2023 (7 months ago)
VIN Number

Off-Grid Skoolie

Design inspo – Boho, Modern, Palm Springs

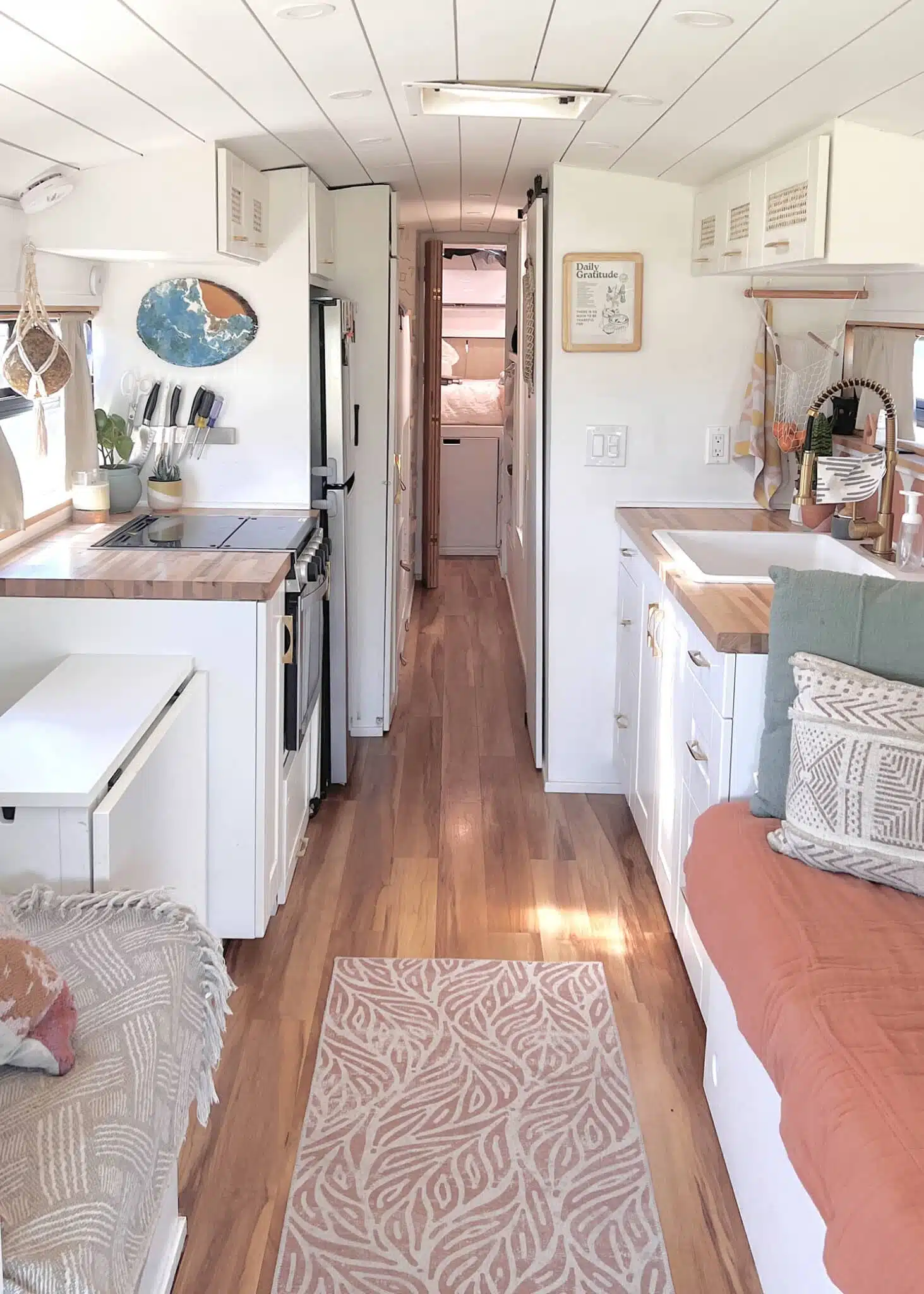

Design layout – Straight hallway – Helps with weight ratio and balance.


2004 Thomas Built Buses HDX, 36ft long with manufacturer 3-inch roof bump. (6’3″ Interior Height)

Pusher engine.

Top speed 74. (Main Speed with towing on flat road 70 mph)

CAT 3126 engine

Allison MD3060 transmission

Only 125,000 miles

Originally from Fresno California and is in great shape. Have not had any mechanical issues besides a small leak which was fixed. (We can recommend some awesome mechanics in the western states)

Gets regular services done every 6 months! 3 tires are new as of a year ago. Comes with extra belts and fluid for the engine bay.

Full off Grid Solar System:

  • Victron Energy MultiPlus 12/3000/120-50 Inverter with Charger – 120V
  • (4) 200 Ah SOK  Lithium Iron Phosphate Batteries – inside the heater – (Total 800 ah)
  • (4) 335 Watt Solar Panels (1340 Watts total)
  • Victron Energy SmartSolar MPPT 150/85-Tr Charge Controller w/ Bluetooth
  • 50 Amp Victron SmartSolar MPPT 100/50 Solar Charge Controller
  • Victron Energy Cerbo GX Communication Centre
  • Victron Energy GX Touch 50
  • 2 – Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger- ORI121236140 (Basically they connect to the bus battery and act as two more panels when your engine is running)
  • Shore power 30 AMP

Solar and electrical were installed by one of the best in the skoolie business.

This system has allowed our family of four to only have to fill up water every 2 weeks (depending on how much water you use) and be fully off-grid from black water tank dumping and no need for electric hookups. However, we do have Shore power hook-up if needed.


RECPRO Rv Stove Gas Rande 21″ tall

  • Dimensions: 17 1/4″D x 21 3/8″W x 20″H (15 1/2″H door)
  • Interior oven dimensions: 16 1/2″W x 14″D x 10″H
  • Color: Black and silver
  • Oven and stovetop capabilities
  • 3 burners
  • Light-up temperature controls

Magic Chef 10.1 cu, ft. Top Freezer Refrigerator in Platinum. Uses very little wattage.

Large kitchen sink: 22″L 16.5″W 9″D

Butcher Block Countertops with Waterlox sealant

Zia Cement Tile Backsplash- Pomelo Terracotta – terracotta-white

Ikea bottom cabinets

Pull out Rev A Shelf pantry and spice rack.



Havelock wool insulation.

Bright LED lighting. With dimmers.

Alder wood window trim, bed trim, and door.

White walls and shiplap ceiling to make it feel more inviting and airy.

Cork and vinyl flooring

Senville Mini Split Air Conditioner Heat Pump (LETO series, 9000 BTU, 110/120Volt)

5KW 12 volt Diesel Heater

RV roof vent in the kitchen. – 3 speed out and 2 speed in.

100 Gallon Fresh Water Tank – inside of bus

45 Gallon Gray Water Tank

Natures Head Composting Toilet

Separate bathroom with vanity and Shower

30″ x 30″ Shower with 7’9″ head clearance height – with a skylight that can hinge open.

Hot Water Heater – Tankless gas

Private main bedroom with bifold door.

Bed that can fit a queen mattress. Under storage under the bed.

Closet with 3 drawers and separate shoe pullouts.

A small desk and work area in the bedroom.

2 Bunk Beds: One is 77″L x 30″W the other is 55″L x 30″W but can be converted into a 77″ L – Climbing wall for upper bunk.

Backup Camera with Monitor (can always have on if you want)

Skylight/hatch from the bedroom to the deck

Custom deck – Access from the bedroom or outside ladder.

Large outside undercarriage for storage

Lots of storage throughout the bus.

Pull out large couch to make into a bed.

Hitch for towing

Outside flood light above front door and above front of bus.

Feel free to reach out with any questions or to see more photos!
